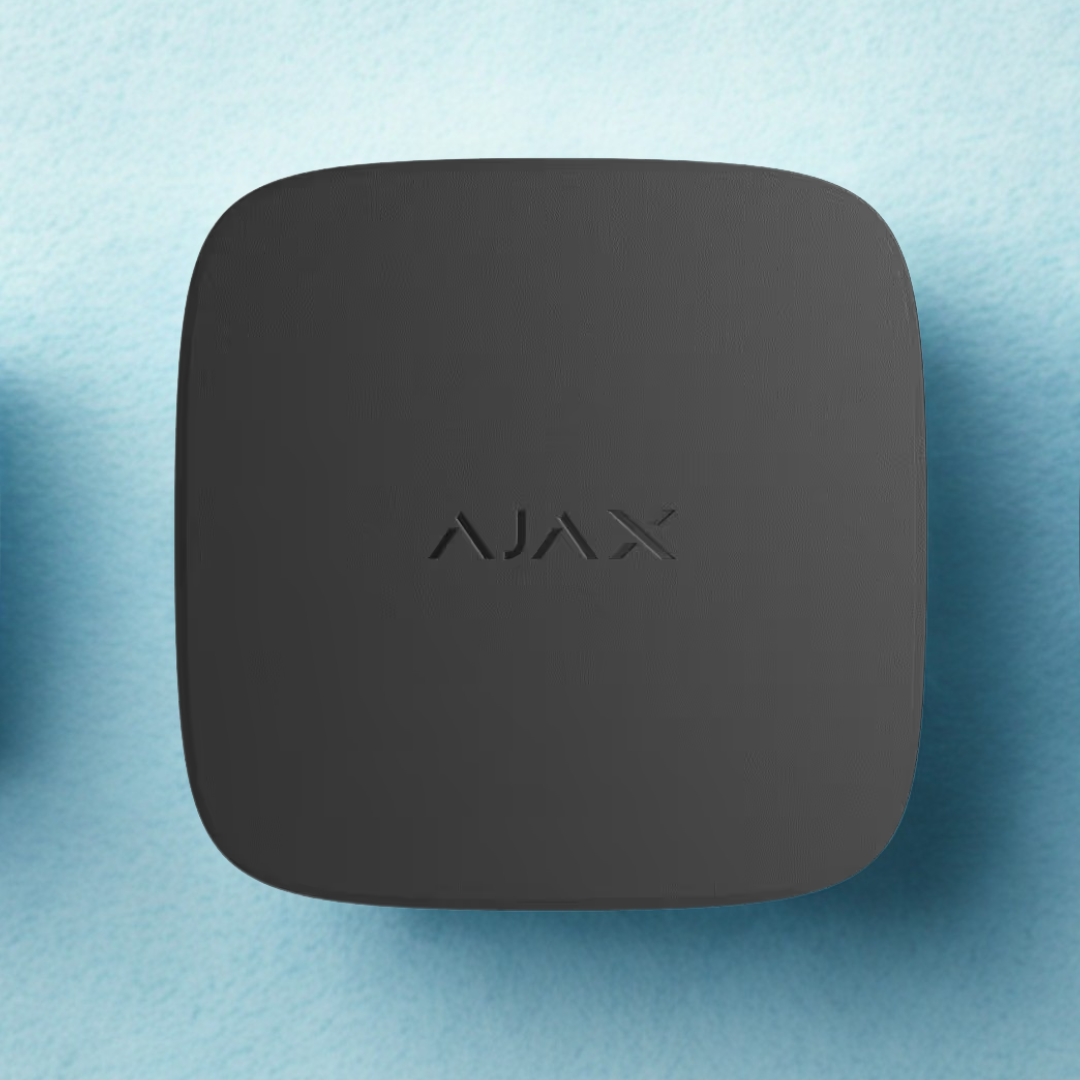

The AJAX FireProtect 2 SB (Heat/Smoke) is a wireless indoor fire detector equipped with a built-in siren. It combines smoke and heat detection to provide comprehensive fire safety.
Power & Battery
• Battery Life: Up to 10 years with non-replaceable lithium batteries
• Power Supply: Powered by built-in batteries
📡 Communication
• Protocol: Utilizes Jeweller for alarms/events
• Range: Up to 1,700 meters in open space
🔥 Detection Capabilities
• Smoke Detection: Dual-spectrum optical sensor
• Heat Detection: Class A1R heat detector
• High-Temperature Alarm: Activates above 64°C
• Temperature Spike Alarm: Detects rapid increases over 10°C within 1 minute
🔊 Siren & Indicators
• Built-in Siren: 85 dB at 3 meters
• LED Indicators: Green (operational), Yellow (malfunction), Red (alarm)
🛡️ Security Features
• Tamper Protection: Alerts if the detector is removed or tampered with
• Communication Loss Detection: Identifies loss of communication within 15 minutes
📐 Dimensions & Environment
• Dimensions: 124 × 124 × 45 mm
• Weight: 268.5 g
• Operating Temperature: 0°C to +50°C
• Humidity: Up to 80%
• Protection Class: IP20
📦 Package Includes
• FireProtect 2 SB (Heat/Smoke) Detector
• SmartBracket mounting panel
• Mounting kit
• Quick Start Guide
