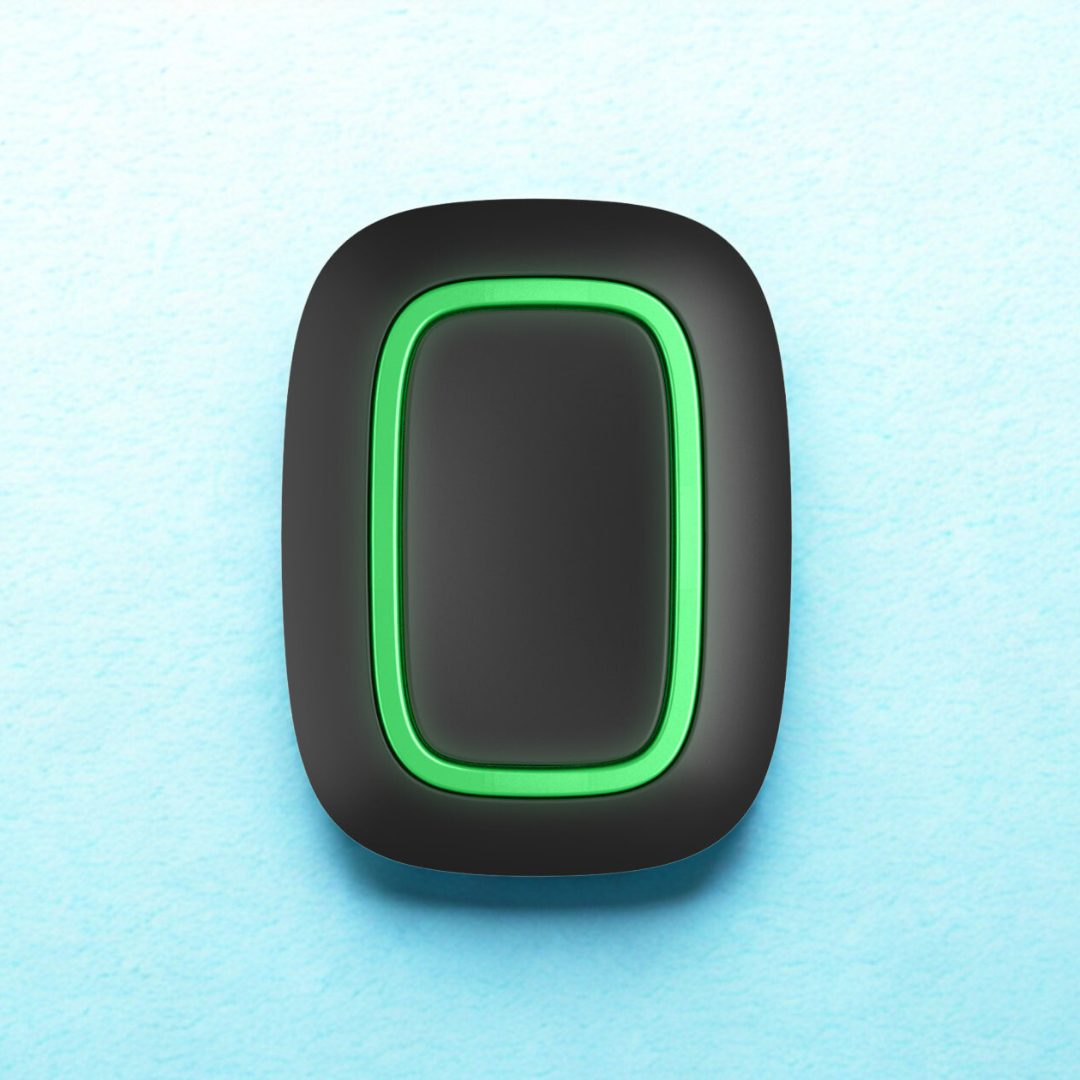

The AJAX Button Jeweller is a wireless smart panic/command button that supports multiple event modes.
Power & Battery
• Battery Life: Up to 5 years (CR2032, pre-installed)
• Operating Voltage Range: 1.8 – 3.3 VDC
📡 Communication
• Protocol: Jeweller (encrypted two-way communication with tamper protection)
• Radio Power: Up to 20 mW (with automatic power control)
• Range: Up to 4,200 ft (open space)
🔘 Function & Features
• Number of Buttons: 1
• Event Modes: Intrusion, Fire, Panic, Gas Alarm, Malfunction, Leakage, Auxiliary, or Custom
• LED Indicator: Confirms command delivery (brightness adjustable)
• Protection Against Accidental Activation: Supports double press or long press
🛡️ Security & Reliability
• Anti-Spoofing: Device authentication
• Communication Loss Detection: After ~36 seconds
• Supervisory Reporting: Battery status updated daily
🌐 Environmental & Physical
• Dimensions: 47 × 35 × 13 mm
• Weight: 16 g
• Operating Temperature: –10°C to +40°C
• Operating Humidity: Up to 75%
• Protection Class: IP55
📦 Package
• Includes: Button Jeweller, pre-installed CR2032 battery, quick start guide
